Eureka Emerald Bay Window Freestanding Wood Heater
SUPPLY PRICE ONLY - Request A Freight Quote

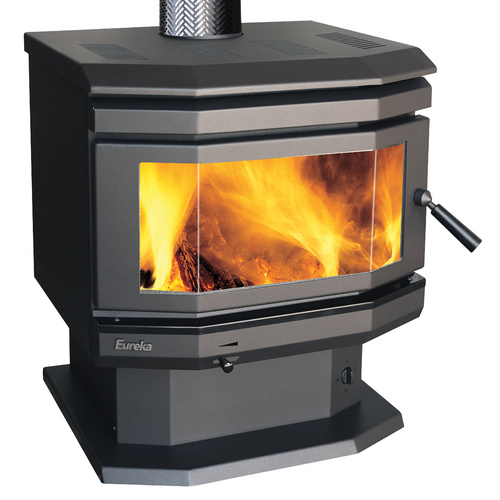

EMERALD FREE STANDING WOOD HEATER
After the success of the "Bay View Solitaire and Diamond freestanding Heaters and fireplace inserts, Eureka are proud to present their little workhorse the Emerald Freestanding Wood heater.
The stunning panoramic glass door gives maximum exposure to the flames dancing within the heater, creating an exciting vision of warmth and comfort.
The Emerald is designed to heat a home from upto 22 squares comfortably. The firebox of the Emerald is one of the largest in this size of heater, enabling ease of use.
This beautifully designed Emerald offers you total home heating, twenty four hours a day, all through winter, with the efficiency of today's technology.
Features
- Unique pre-heated primary and secondary combustion air for "total burn".
- Minimum wall clearances. 150mm from a rear wall and 450mm from a side wall. 125mm from the corners in a corner installation.
- Maximum heat output and long burn periods per fuel load.
- Heavy duty, removeable 8mm thick steel sacrificial baffle plate.
- Quality three-speed fan, designed for easy access and removal.
- Clean glass door during normal burning (self-cleaning).
- Deep ash bed for convenient ash retention.
- Mimimum hearth requirements.
- Strong welded seam and folded 6mm firebox.
- Superior baked high temperture paint finish.
- 5mm heat and shock resistant clear vision door glass.
- Firebrick lining on the sides and back of the firebox which enchances the combustion efficiency whilst protecting the most vulnerable part of the firebox.
- Complies to AS/NZS 2918.2001, AS/NZS 4012/4013.
Dimensions
Capacity: Up to 220m2
Height: 745mm
Width: 655mm
Depth: 610mm
Weight: 172kg
Emissions: 1.0g
Efficiency: 73%
Output: 15kw
Hearth Specifications
Hearth Type: Full
Hearth Size: W900mm D1070mm T5mm (300mm in front of heater base)
(208228BL)
SKU | 208228BL |
Brand | Eureka |
Shipping Weight | 172.0000kg |
Shipping Width | 0.920m |
Shipping Height | 0.670m |
Shipping Length | 0.840m |
Shipping Cubic | 0.517776000m3 |
Heating Type | Convection |
Base Style | Pedestal |
Fan | Standard 3 speed fan |
Cook Top | No |
Ash Pan | No |
Finish | High Temperature Stove Paint (Charcoal) |
Heating Capacity | 220m² or 24 Squares 15kW |
Dimensions (mm) height x width x depth | 745mm H x 655mm W x 610mm D |
Emissions - g/kg | 1.0g/kg |
Efficiency | 73% |
Firebox Material | 6mm Steel |
Baffle Material | 8mm Steel |
Firebox Side Lining | Bricks |
Firebox Base Lining | Nil |
Door Opening Size (mm) | 486mm x 213mm |
Flue Diameter | 150mm / 6" |
Weight (kg) | 180kg |
Domestic Boiler/Wetback | No Option |
Warranty | 10 Year Limited Warranty |
Made In | Australia |
Min Clearance - Rear Wall (mm) | 150mm |
Min Clearance - Side Wall (mm) | 450mm |
Min Clearance - Corner Installation (mm) | 125mm |
Minimum Hearth Size - Flat Wall Installs | 900mm x 1070mm |
Hearth Required Forward of Door Opening | 300mm |
Min Hearth Thickness (mm) | 4.5mm |
Please Note | Hearths, Fluing, Accessories and Installation are not included in our pricing. The heating capacity stated is a guide only and may vary from region to region depending upon ambient temperatures and your house design. Information provided has been |
